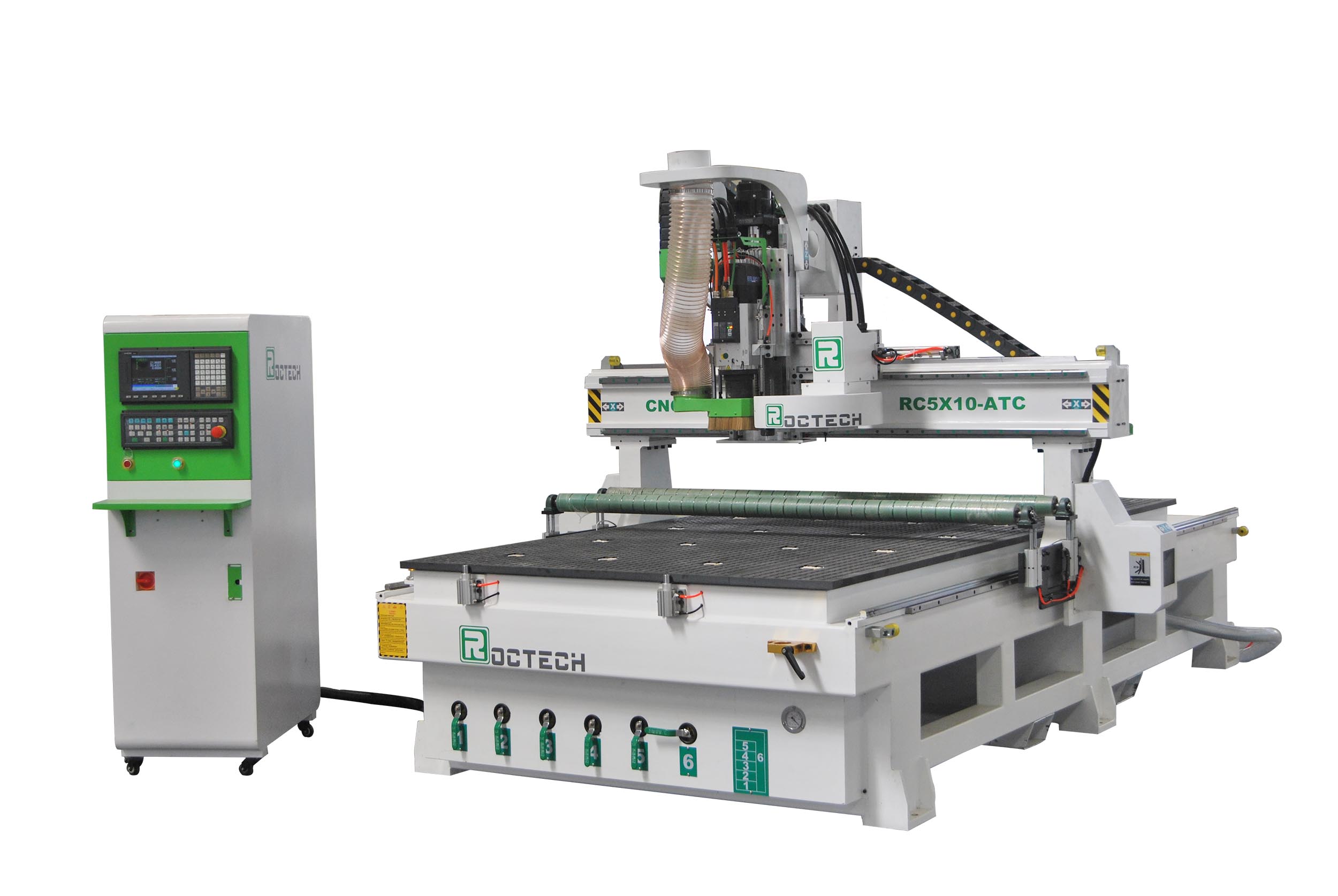

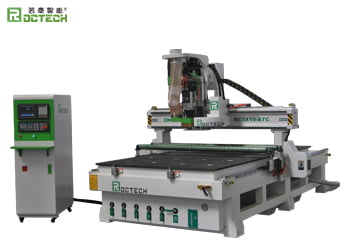

Find Details and Price about CNC Machine Center 1530S-ATC,The automatic push function of the CNC Machine Center RC1530S-ATC can be used with the loading and unloading platform to save unloading time and improve processing efficiency, and ......

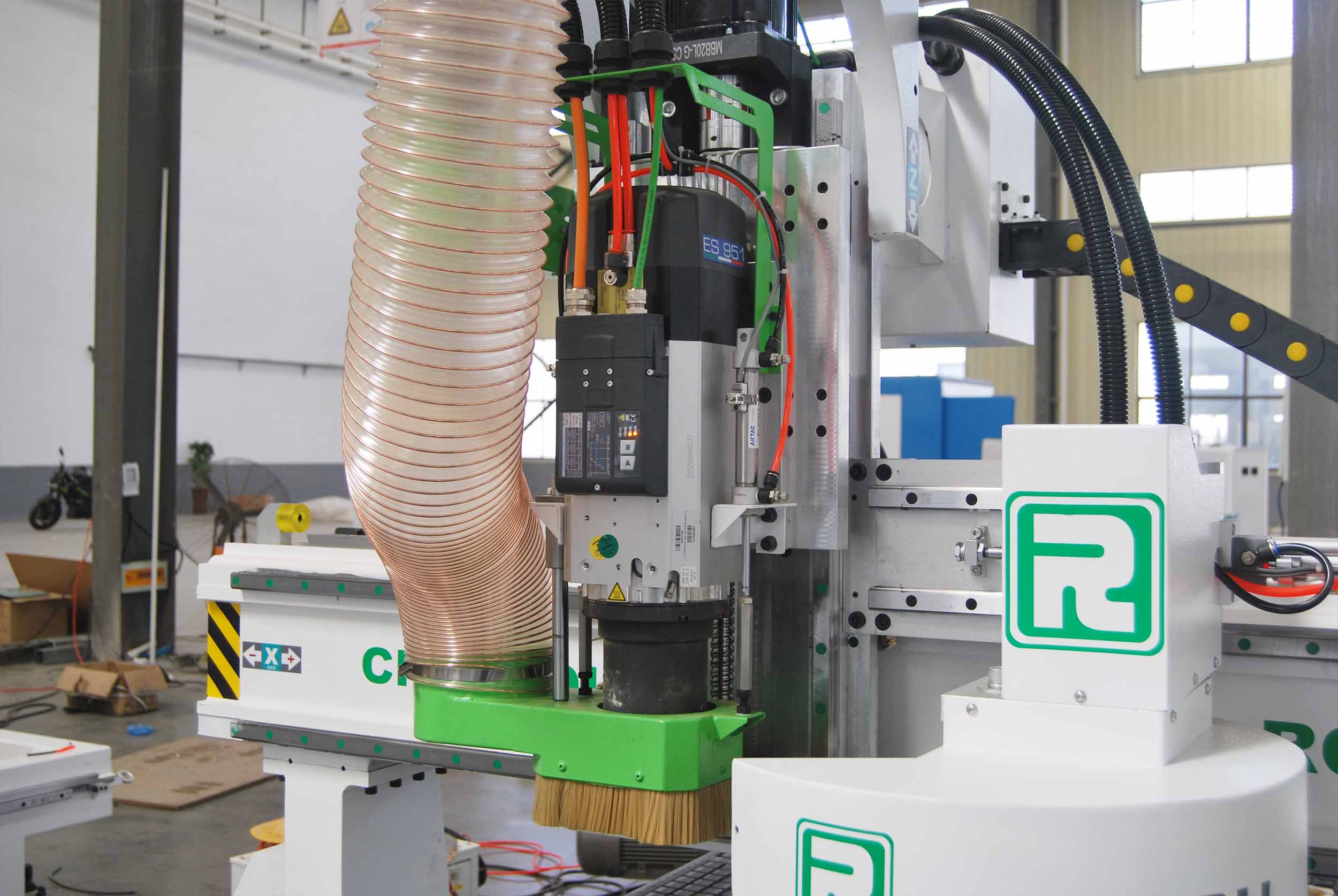

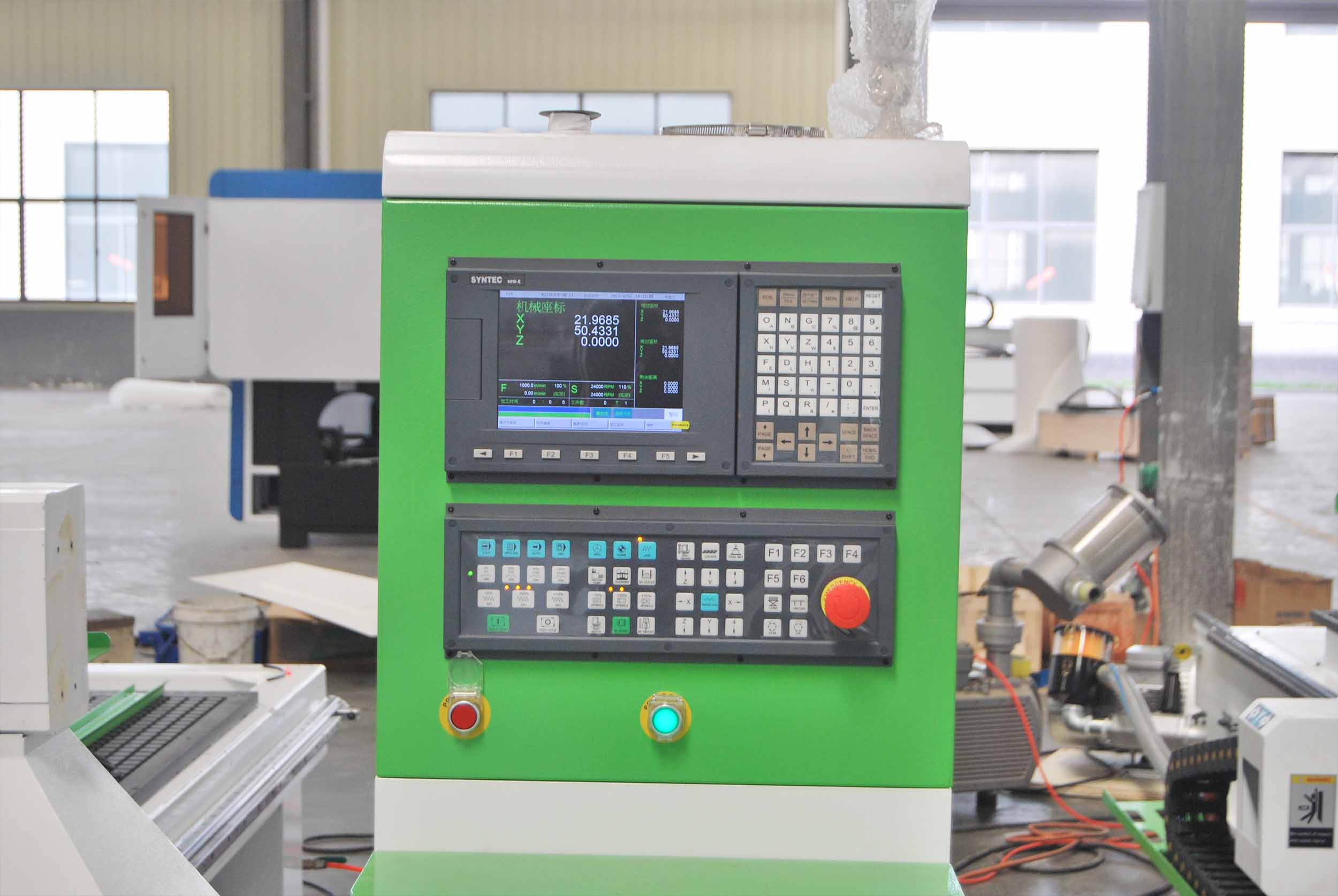

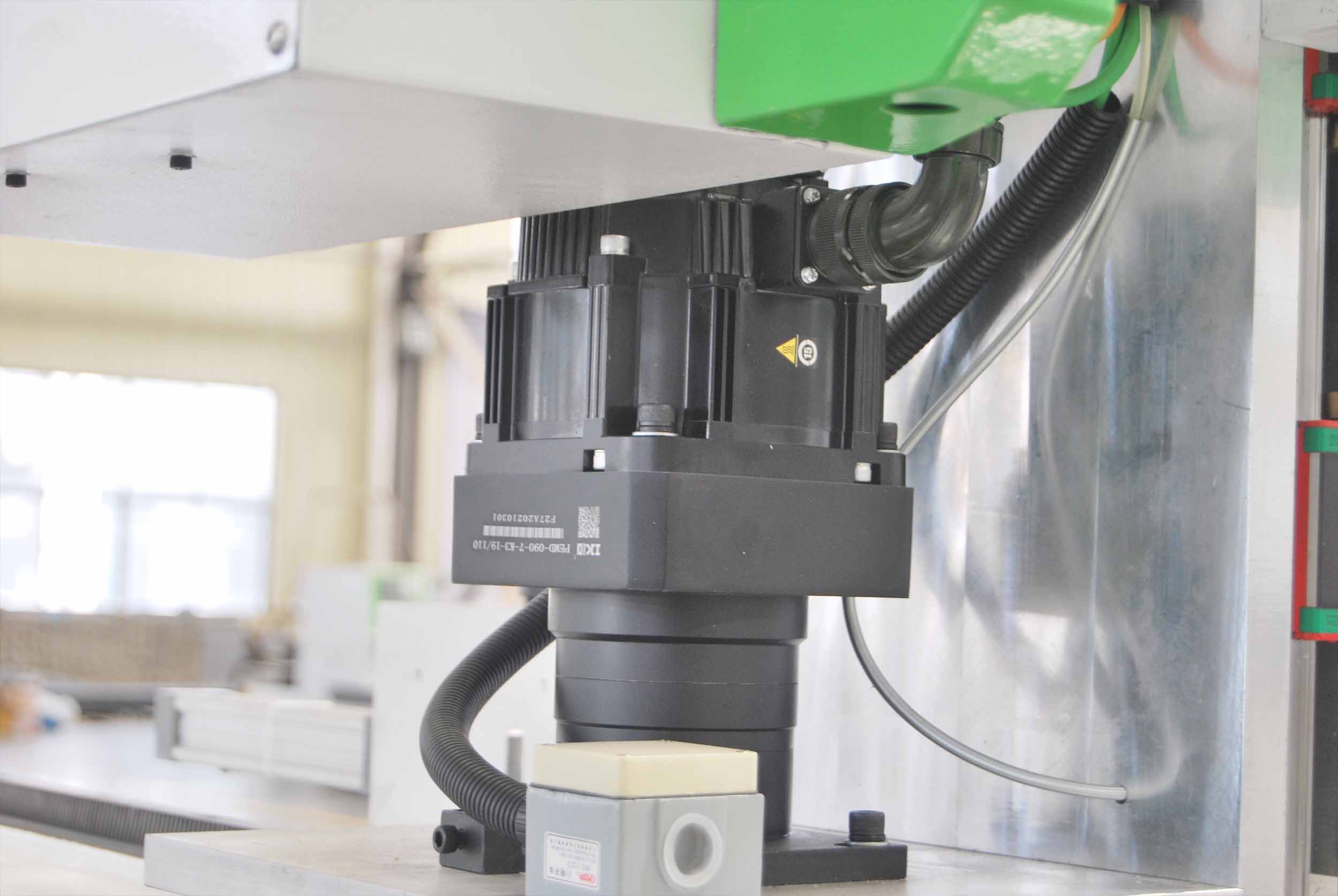

Syntec Controller, Yaskawa Servo Motor and Driver, Italian HSD Air cooling ATC spindle.
CarouselTool Magazine, saving more processing time than traditional ones. According to different work, we can provide the carousel tool magaine with 8,12 or 16 tool holder forks.

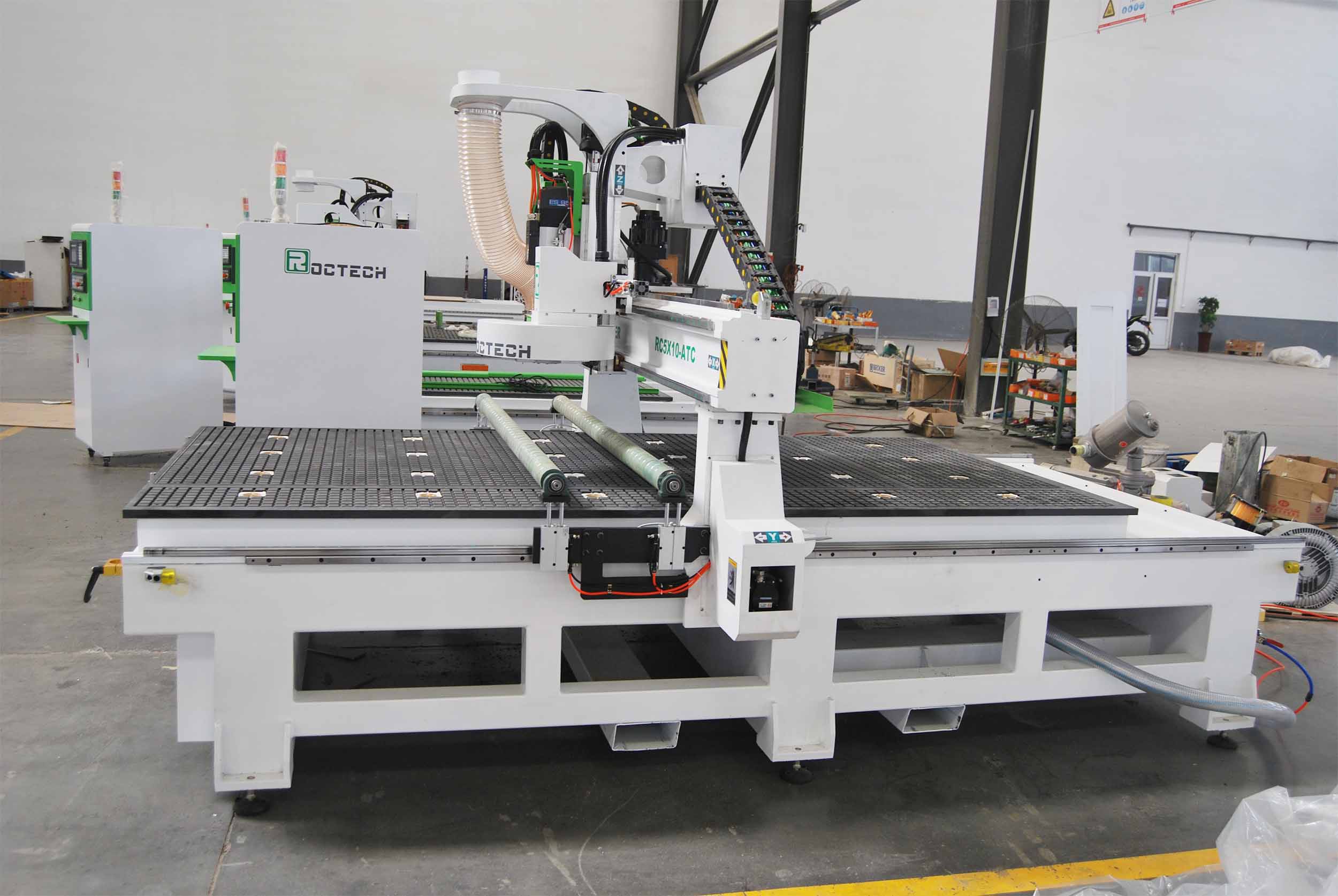

With automatically pushing function, it can connect the auto loading and unloading platform, for reducing labor cost and saving time.
Intelligent processing cross-border protection function can prevent the excessive processing caused by mechanical collision.
| X,Y,Z Working Area | 1500x3000x250mm |
| Table Size | 1560×3440mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | Vacuum and T-slot Combined |
| Frame | Welded structure |
| X, Y Structure | Rack and Pinion Drive |
| Z Structure | Hiwin Linear Rails and Ball Screw |
| Max. Power Consumption | (Without Spindle) 4.5kw |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | 9.6kw |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Yaskawa servo |
| Working Voltage | AC 380V/50/60Hz,3PH |
| Command Language | G Code |
| Operating System | Syntec Control System |
| Computer Interface | USB |
| Flash Memory | 128M(U Disk) |
| Collet | ER32 |
| X,Y Resolution | <0.03mm |
| Software Compatibility | Type3/ Artcam software |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Packing Size | 3700X2250X2250mm |
| N.W. | 2600KG |
| G.W. | 2650KG |
| Optional Parts | Dust Collector,Vacuum Pump,Rotary System |
