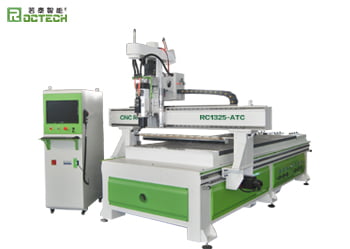

Find Details and Price about CNC Router 1325-ATC,CNC ROUTER 1325-ATC can automatically locate materials, save a lot of time and improve work efficiency, CNC ROUTER 1325-ATC suppliers and manufacturers have complete product detail......
With Syntec Controller, Taiwan Hiwin Linear Rails, Yaskawa Servo Motor and Driver, Italian ATC spindle.
With auto positioning rods, can locate the materials automatic, save much time and improve the work efficiency.
Intelligent processing cross-border protection function can prevent the excessive processing caused by mechanical collision.
Furniture: doors, cabinets, tables and chairs.
Considering to the customers' different requirements about the sizes,we can provide: RC1530-ATC, RC2030-ATC, RC2040-ATC, RC2550-ATC etc.
Parmeter | RC1325-ATC |
X,Y,Z,A,C Traveling | 1330*2500*220mm |
Table | Vacuum and T-slot Combined Table |
Frame | Welded Structure |
X,Y,Z Drive System | X,Y Helical rack and pinion,Z Ball screw |
Max Rapid Speed | 35000mm/min |
Max Working Speed | 20000mm/min |
Spindle Power | 9.0KW |
Spindle Speed | 0-24000RPM |
Driving System | Ysakawa Servo Motors |
Working Voltage | AC380v,50/60Hz，3Ph |
Command Language | G Code |
Operating System | Syntec Control |
Software | UG，PowerMill,Artcam,Type 3 |
Gross Weight | 3150KG |
Options | Vacuum pump |
