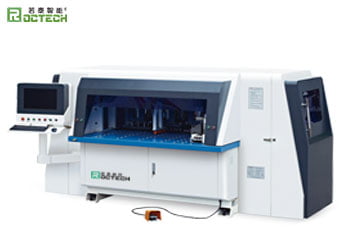

Find Details and Price about Five -Side Drilling Center,The Five -Side Drilling Center can automatically eject the position device, which can automatically locate the position of the material according to the different dimensions of the......
1.The machine is equipped with a 19-inch color screen, wireless keyboard and USB port;The control system is from Japan. The screen can input image and text. It’s very easy to operate;The file format can be designed according to the customer’s production management without drill holes data input. It improves the efficiency of drilling.
2.Automatic fixing device:It is able to automatically fixed or release the material according to the programming, during the drilling and loading material.
3.Automatic Pop-Up position device,It can automatically locate the material’s positioning, according to different size of work piece.
4.Automatic loading device:It is able to put the sheet to the exact positions which be programmed.
Spindle Power | 2.2KW |
Max width of panel | 50mm |
Mini Length of Panel | 1200mm |
Mini Length of Panel | 200mm |
Max Thickness of Panel | 50mm |
Vetrical Boring Unit | 7（X-Axis）+10（Y-Axis） |
Horizontal Boring Unit | 2+2+2+2 |
Spindle Power | 2.2KW 4800RPM |
Max Speed | X-Axis-70m/min Y-Axis-60m/min Z-Axis-30m/min U-Axis-25m/min |
Working Table Height | 890mm |
Working Voltage | AC380v,50/60Hz，3Ph |
Working Pressure | 0.6-0.8Mpa |
Total Power | 8KW |
Spindle Power | 18000RPM |
Gross Weight | 2700KG |
Dimensions | 3250*2200*1750mm |
