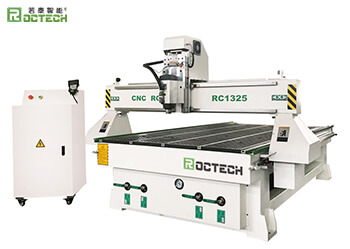

Find Details and Price about CNC Router 1325,The body of CNC ROUTER RC1325 is made of thick welded steel pipes, which are subject to strict tempering and stress relief treatment and are not easy to deflect. The supplier and m......
The machine body is made of thick welded steel tubes which have gone through strict tempering and stress relief treatment,not easy to deflect.
DSP control system, Italian air cooling spindle.
Furniture: doors, cabinets, tables and chairs.
Customization special machines are acceptable.
| No. | Description | Parameter |
| 1 | X,Y,Z Working Area | 1300x2500x200mm |
| 2 | Table Size | 1300×2500mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
| 5 | Table Surface | Vacuum and T-slot Combined |
| 6 | Frame | Welded structure |
| 7 | X, Y Structure | Rack and Pinion Drive |
| 8 | Z Structure | Linear Rails and Ball Screw |
| 9 | Max. Power Consumption | (Without Spindle) 4.5kw |
| 10 | Max. Rapid Travel Rate | 45000mm/min |
| 11 | Max. Working Speed | 30000mm/min |
| 12 | Spindle Power | 6kw |
| 13 | Spindle Speed | 0-18000RPM |
| 14 | Drive Motors | Yaskawa Servo Motor |
| 15 | Working Voltage | AC 380V/60Hz,3PH |
| 16 | Command Language | G Code |
| 17 | Operating System | DSP Control System |
| 18 | Computer Interface | USB |
| 19 | Flash Memory | 8G(U Disk) |
| 20 | Collet | ER32 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Type3/ Artcam software |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 3300X2100X1980mm |
| 26 | N.W. | 1300KG |
| 27 | G.W. | 1600KG |
| 28 | Optional Parts | Dust Collector, Vacuum Pump, Rotary System |
