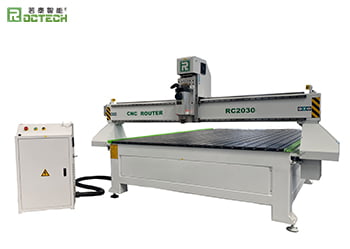

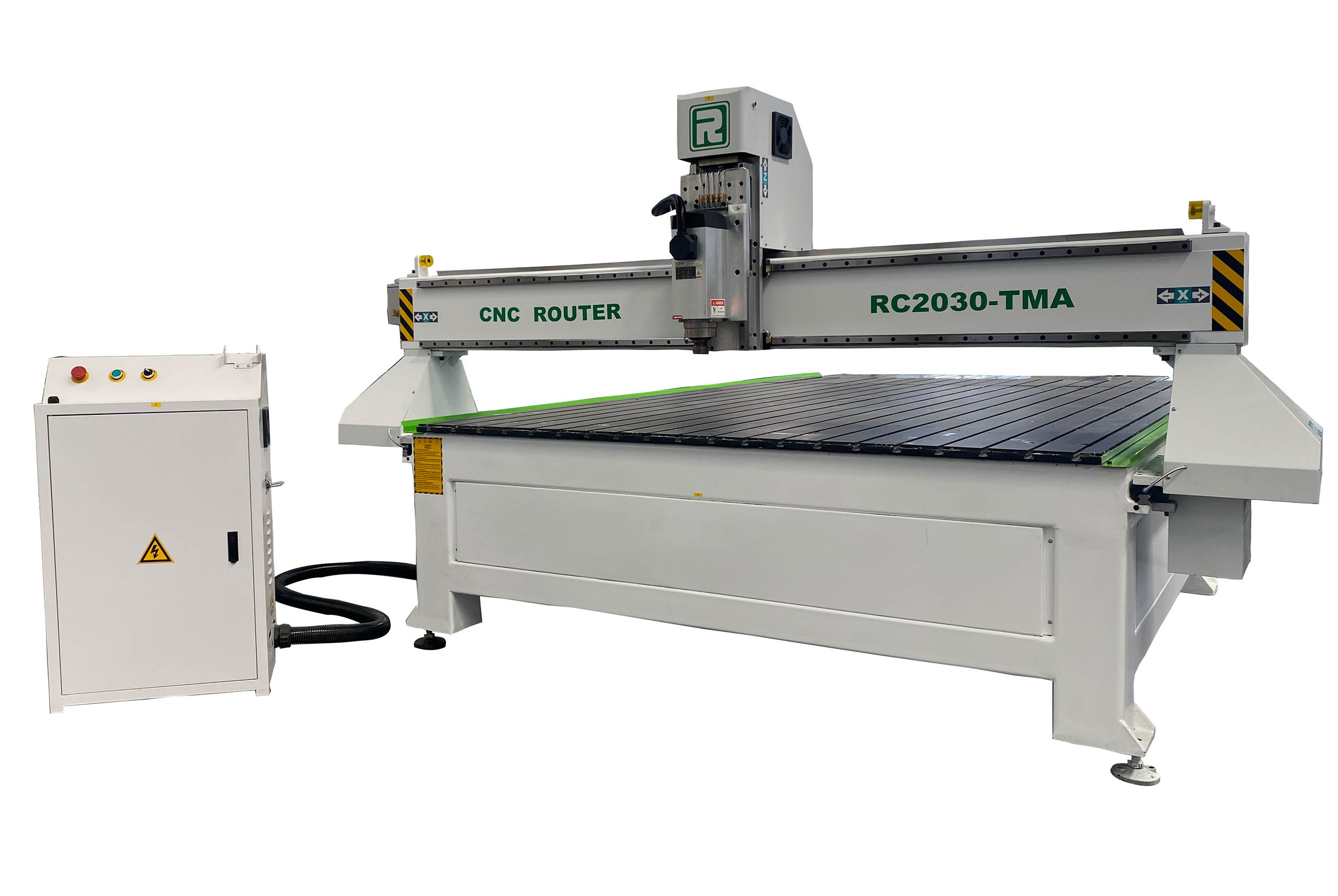

Find Details and Price about CNC Router,CNC ROUTER 2030 is applicable to the production of doors, cabinets, tables and chairs, and accepts special customization. CNC ROUTER 2030 suppliers and manufacturers have complete ......
The machine body is made of thick welded steel tubes which have gone through strict tempering and stress relief treatment,not easy to deflect.
DSP control system, Italian air cooling spindle.
Furniture: doors, cabinets, tables and chairs.
Customization special machines are acceptable.
| Description | Parameter |
| X,Y,Z Working Area | 2000x3000x200mm |
| Table size | 2000×3000mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | Vacuum and T-slot Combined |
| Frame | Welded Structure |
| X, Y Structure | Rack and Pinion, Hiwin Linear Rail |
| Z Structure | Hiwin Rail Linear and Ball Screw |
| Max. Power Consumption | (Without Spindle) 4.5Kw |
| Max. Rapid Travel Rate | 30000mm/min |
| Max. Working Speed | 20000mm/min |
| Spindle Power | 4.5KW |
| Spindle Speed | 0-18000RPM |
| Drive Motors | Big Stepper motor |
| Working Voltage | AC380V 50/60Hz,3PH |
| Command Language | G Code |
| Operating System | DSP System |
| Computer Interface | USB |
| Flash Memory | 512M(U Disk) |
| Collet | ER32 |
| X,Y Resolution | <0.03mm |
| Software Compatibility | Artcam/Type3,JD Software |
| Running Environment Temperature | 0 - 45 Centigrade |
| Relative Humidity | 30% - 75% |
| Packing Size | 4700*2300*1900mm |
| G.W. | 3400KG |
